[LAUMAS] Floor Scale PO
Description
Features

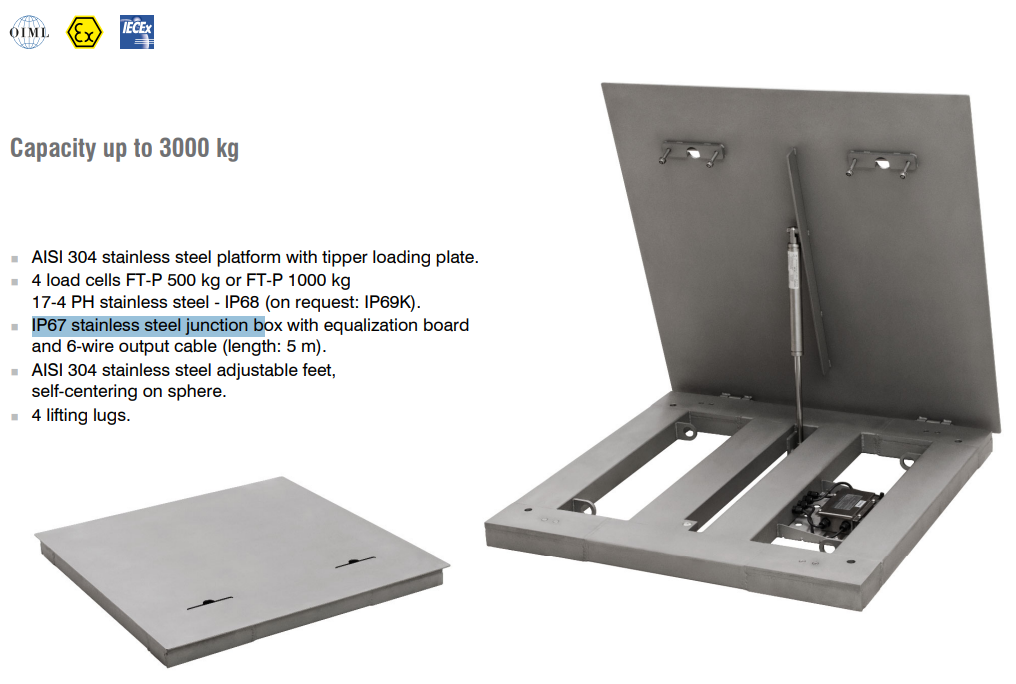

AISI 304 STAINLESS STEEL CONSTRUCTION
INSPECTABLE LOADING PLATE.
JUNCTION BOX SIDES. STAINLESS STEEL JUNCTION BOX WITH EQUALIZATION BOARD AND 6 WIRES CABLE (5 M)
4 SHEAR BEAM 17-4 PH STAINLESS STEEL IP68 LOAD CELLS
C3 (OIML R60) ACCURACY CLASS
AISI 304 STAINLESS STEEL SELF-CENTERING ADJUSTABLE JOINTED FEET
FOUR WELDED EYELETS FOR PLATFORM LIFTING.
Model
Material
IP Protection
Resolution
Standard Interface
GENERAL FEATURES

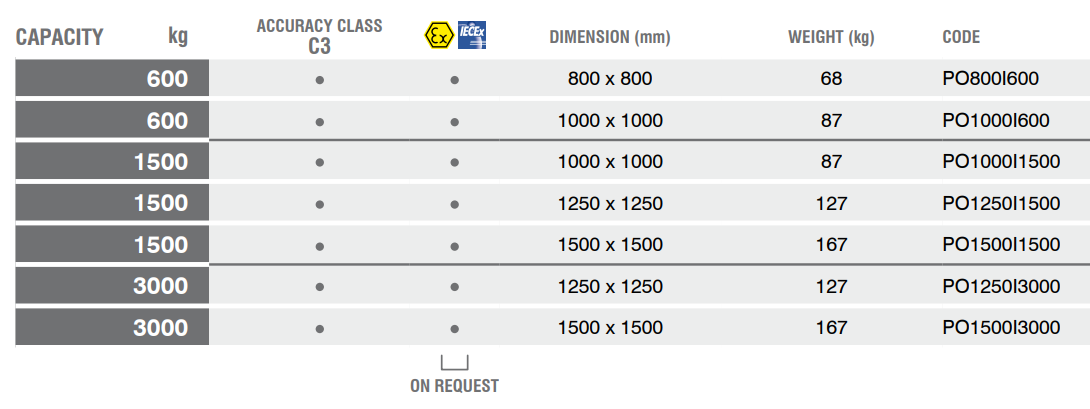

| PO800I600 | max kg 600 | dim. | 800 x 800 mm |
| PO1000I600 | max kg 600 | dim. | 1000 x 1000 mm |
| PO1000I1500 | max kg 1500 | dim. | 1000 x 1000 mm |
| PO1250I1500 | max kg 1500 | dim. | 1250 x 1250 mm |
| PO1500I1500 | max kg 1500 | dim. | 1500 x 1500 mm |
| PO1250I3000 | max kg 3000 | dim. | 1250 x 1250 mm |
| PO1500I3000 | max kg 3000 | dim. | 1500 x 1500 mm |
- AISI 304 STAINLESS STEEL CONSTRUCTION
- INSPECTABLE LOADING PLATE.
- JUNCTION BOX SIDES. STAINLESS STEEL JUNCTION BOX WITH EQUALIZATION BOARD AND 6 WIRES CABLE (5 M)
- 4 SHEAR BEAM 17-4 PH STAINLESS STEEL IP68 LOAD CELLS
- C3 (OIML R60) ACCURACY CLASS
- AISI 304 STAINLESS STEEL SELF-CENTERING ADJUSTABLE JOINTED FEET
- FOUR WELDED EYELETS FOR PLATFORM LIFTING.
