[Syslec] Indicator Ex1/21 weight indicators for ATEX zones(IT3000Ex and IT8000Ex)
Description
Features
IT3000Ex - Connection of one scale base with –for example– 4 load cells 350 Ohms each or 8 load cells 1000 Ohm each
IT3000Ex - W&M approved resolution is 6000d at a preload of 80% max.
IT3000Ex - Use as multiple range scale (e.g. 3 x 3000d) or multi-interval scale possible
IT8000Ex - Connecting of one scale base with, e.g., 4 load cells 350 Ohms each or 8 load cells 1000 Ohm each
IT8000Ex - W&M approved resolution is 6000d at a preload of 80% max.
IT8000Ex - Use as multiple range scale (e.g. 3 x 3000d) or multi-interval scale possible
IT8000Ex - W&M approved internal storage of up to 450,000 weighing transactions
Model
IT3000Ex and IT8000Ex
Material
IP Protection
Resolution
Standard Interface
Ex1/21 weight indicators for ATEX zones
IT3000Ex and IT8000Ex for explosion endangered zones
SysTec's IT3000Ex and IT8000Ex weight indicators are approved in compliance with the ATEX directive for use in hazardous ATEX zones 1, 2, 21 and 22. The rugged, W&M approved weight indicators incorporated in a stainless steel housing protected to the IP65 standard have proven themselves in harsh industrial environments, such as chemical, pharmaceutical and food plants.
IT3000Ex weight indicator
- ATEX weight indicator for W&M approved scales in hazardous area
- W&M approved filling in hazardous area (software option FILL)
- W&M approved filling of gas bottles (software option GASFILL)
- Fieldbus terminal (software option ONLINE OP)
- Integration of scales into networks (wired or WLAN)
- Mobile scales in hazardous area

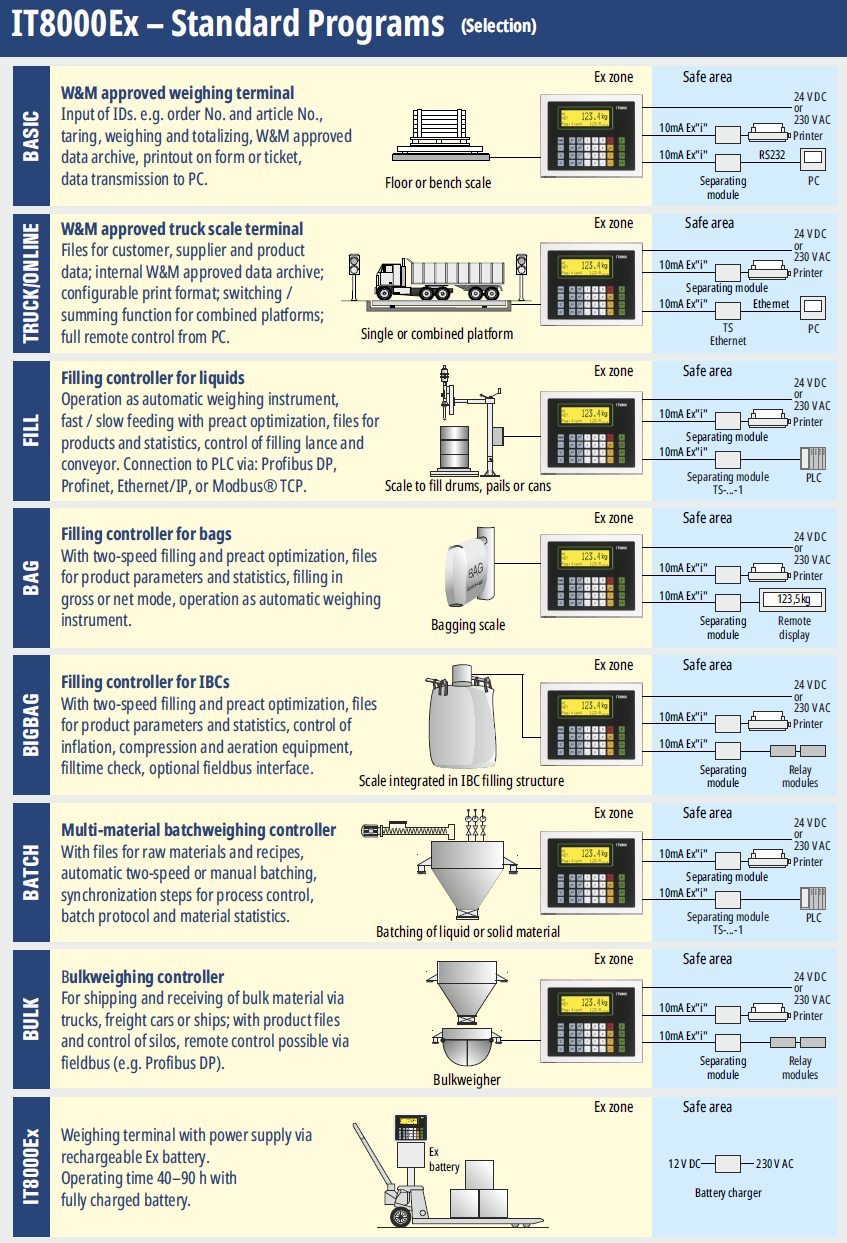

IT8000Ex weight indicator
- ATEX weight indicator IT8000Ex for W&M approved floor or bench scales
- W&M approved truck scales
- Filling systems: Controller for filling of liquids into drums, canisters, etc.
- Bagging scales: Controller for filling of bags
- Filling of IBCs: Filling controller with optional fieldbus interface
- Multi-material batching controller
- Shipping and receiving scale for bulk material
- Operation as automatic or non-automatic weighing instrument (AWI / NAWI)
- Connecting of one scale base with, e.g., 4 load cells 350 Ohms each or 8 load cells 1000 Ohm each
- W&M approved resolution is 6000d at a preload of 80% max.
- Use as multiple range scale (e.g. 3 x 3000d) or multi-interval scale possible
- W&M approved internal storage of up to 450,000 weighing transactions
