[Rice Lake] Dimensioning Systems iDimension Plus Parcel Static
Description
Features
Model
Material
IP Protection
Accuracy class
Minimum LC verification
A Dimensioning System Like Never Before
Rice Lake's iDimension Plus is the best-in-class solution for measuring boxes, flats, polybags, tubes and irregular-shaped packages. iDimension Plus eliminates dimensional weight corrections and carrier fees by providing accurate dimension and weight calculations required by parcel and postal carriers.
Easy Setup
iDimension Plus uses a pre-assembled telescoping pole assembly with scanner height settings at 48 or 60 inches (1.2 or 1.5 meters) above a work surface. The second generation head is backward-compatible with the original pole assembly, making an easy upgrade path to take advantage of improved measuring capabilities. iDimension Plus is also available without a pole assembly for mounting the dimensioning head on a freestanding frame or existing structure.
Speed and Accuracy
Parcels are dimensioned faster and more accurately than manual measurements, eliminating the risk of human error while gaining efficiency and labor savings. With industry-leading speed, parcels are automatically measured within 0.2 inches (5 mm), with no need for special alignment or handling while placing a package under the dimensioner. iDimension Plus can dimension irregular-shaped packages such as cylinders, spheres, tubes, polybags and uneven shapes.
Innovative Technology

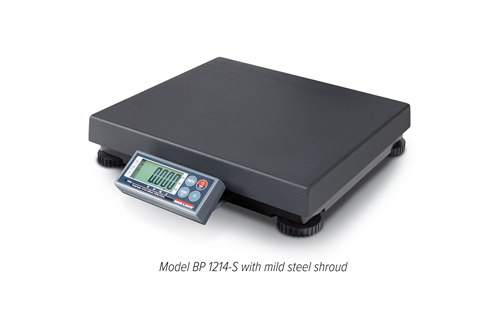

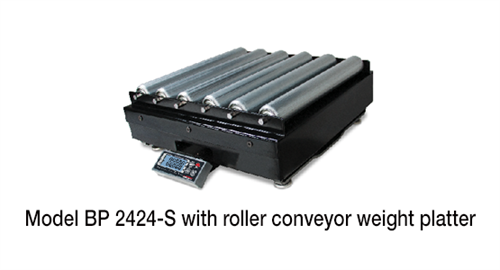

iDimension Plus uses the latest dimensioning technology coupled with industry-leading algorithms to deliver Legal for Trade dimensions in a fraction of a second. Using an attached BenchPro scale and RGB Assist mode, dimensions can be captured for envelopes, flats and small objects that fall below the 2.4-inch Legal for Trade limit. iDimension Plus comes standard with Ethernet TCP/IP, dual USB-A ports and Wi-Fi.
Operator Display
A 10-inch color touchscreen display provides instant feedback, with images, dimensions, weights and intuitive operator functions for day-to-day use.
Operating Versatility
iDimension Plus has automatic and manual trigger configurations. A small footprint and configurable scan area provide easy integration into any workspace.
iDimension Plus Parcel Static Dimensioning System
Options
Specifications
Power Requirements: Communication Ports: Display: | Accuracy: Software Integration: Temperature: | Humidity: |
Legal for Trade Minimum and Maximum Measurement Capability
| Platform Distance | 48 in (1.2 m) | 1.5 m | 2 m XL | |||
|---|---|---|---|---|---|---|
| Min/Max* | Min | Max | Min | Max | Min | Max |
| Length | 2.4 in (50 mm) | 39 in (1,000 mm) | 2.4 in (50 mm) | 47 in (1,200 mm) | 4 in (100 mm) | 48 in (1,200 mm) |
| Width | 2.4 in (50 mm) | 24 in (600 mm) | 2.4 in (50 mm) | 32 in (800 mm) | 4 in (100 mm) | 32 in (800 mm) |
| Height | 2.4 in (50 mm) | 24 in (600 mm) | 2.4 in (50 mm) | 28 in (700 mm) | 4 in (100 mm) | 32 in (800 mm) |
| Division | 0.2 in (5 mm) | 0.2 in (5 mm) | 0.5 in (10 mm) | |||
| *With RGB assist enabled smaller measurements are possible | ||||||
Largest Box Measurement Capability for Max Length vs. Max Height
Pole Assembly Height | Minimum LFT Box Size | Maximum LFT Box Size | |
|---|---|---|---|
Largest Box with Max Height | 48 in (1.2 m) | 2.4 × 2.4 × 2.4 in (50 × 50 × 50 mm) | 24 × 14 × 24 in (600 × 350 × 600 mm) |
| Largest Box with Max Height | 48 in (1.2 m) | 2.4 × 2.4 × 2.4 in (50 × 50 × 50 mm) | 39 × 24 × 8 in (1,000 × 240 × 200 mm) |
| Largest Box with Max Height | 60 in (1.5 m) | 2.4 × 2.4 × 2.4 in (50 × 50 × 50 mm) | 32 × 20 × 28 in (800 × 500 × 700 mm) |
| Largest Box with Max Height | 60 in (1.5 m) | 2.4 × 2.4 × 2.4 in (50 × 50 × 50 mm) | 48 × 32 × 4 in (1,200 × 800 × 100 mm) |

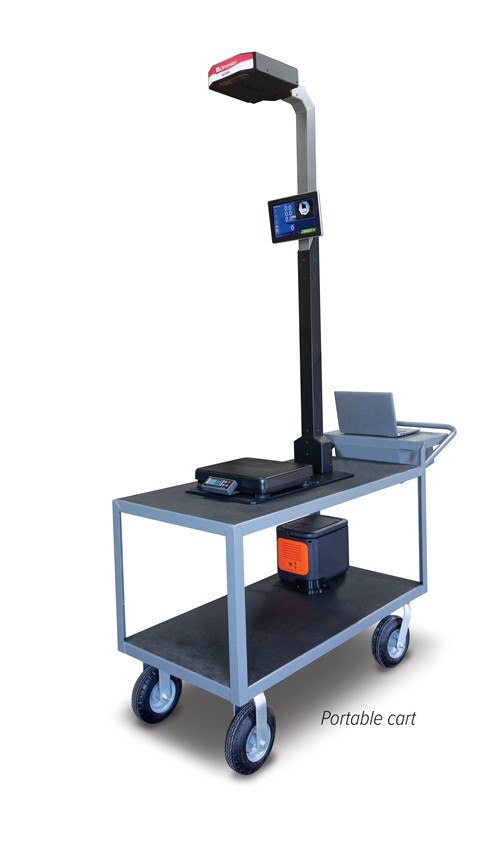

Portable Cart Dimensions
| Portable Cart | |||
|---|---|---|---|
| A | 63.20 in (1,605 mm) | B | 60.20 in (1,529 mm) |
iDimension Plus Dimensions
| iDimension Plus | |||
|---|---|---|---|
| A | 63.10 in (1,603 mm) | F | 19.85 in (504 mm) |
| B | 60.50 in (1,537 mm) | G | 2.84 in (72 mm) |
| C | 35.00 in (889 mm) | H | 25.00 in (635 mm) |
| D | 4.13 in (105 mm) | I | 19.10 in (485 mm) |
| E | 6.00 in (152 mm) | J | 14.25 in (362 mm) |
iDimension Plus Scanning Head Assembly Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 9.66 in (229 mm) | E | 1.25 in (51 mm) | I | 1.35 in (114 mm) |
| B | 10.99 in (216 mm) | F | 1.62 in (15 mm) | J | 4.33 in (38 mm) |
| C | 4.14 in (183 mm) | G | 0.52 in (41 mm) | ||
| D | 3.25 in (84 mm) | H | 2.58 in (38 mm) | ||
Optional iDimension Plus Floor Mount Stand Assembly Dimensions
| Dimensions | |
|---|---|
| A | 47.34 in (1,202 mm) |
| B | 123.13 in (3,128 mm) |
| C | 24.21 in (615 mm) |
iDimension Plus Mounting Bracket (pn 198708) Dimensions
| Dimensions | |||
|---|---|---|---|
| A | 7.37 in (187 mm) | D | 2× 0.28 |
| B | 4.12 in (105 mm) | E | 3× 0.19 |
| C | 3.14 in (80 mm) | ||
